Landcruiser
Prado 250
Our INFINITY system is designed to suit the Landcruiser from the ground up. Australian made our modules fit using all the available space.
Modular Removable and reconfigurable in seconds.
Explore INFINITY

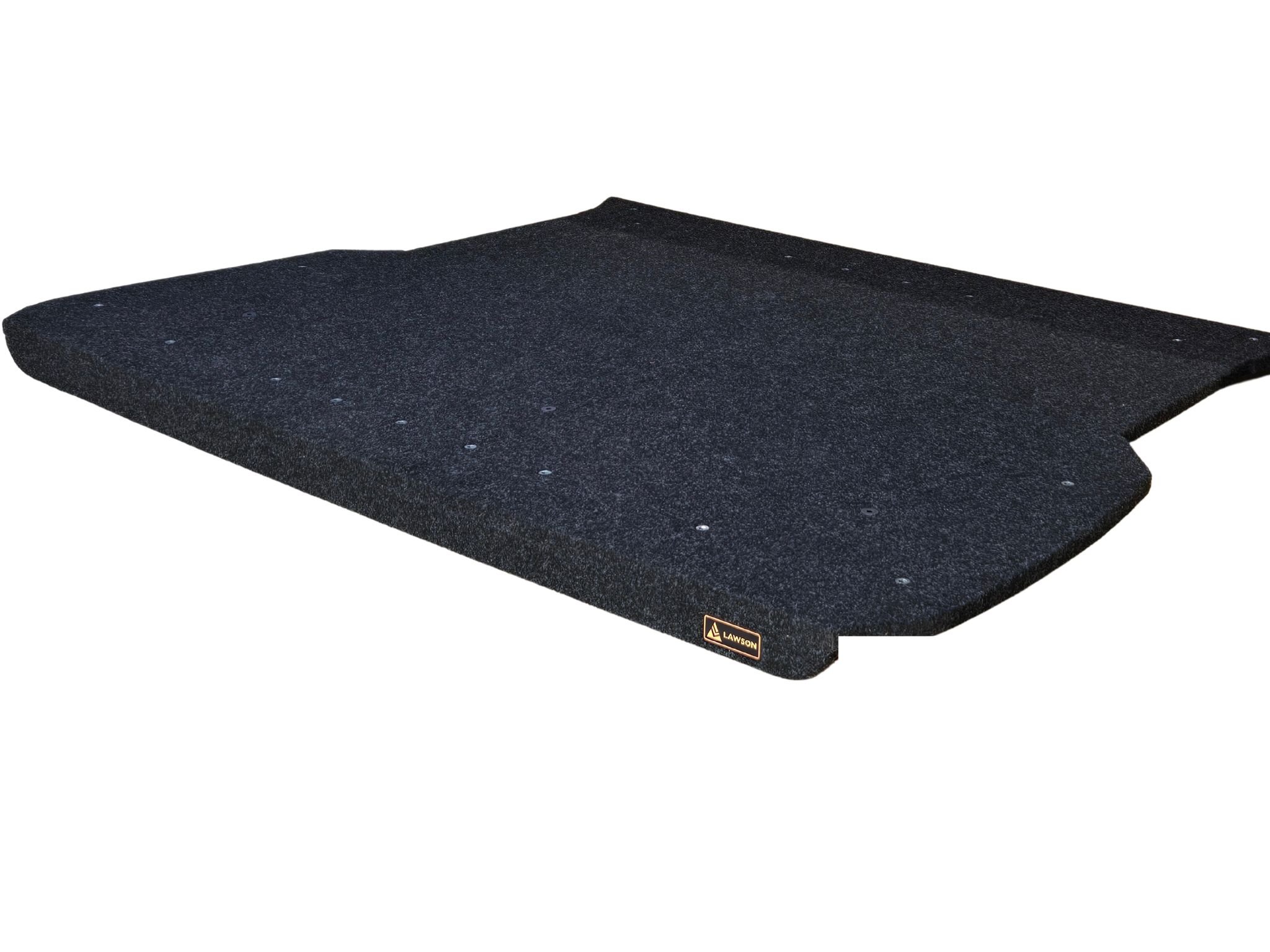

Prado 250 False Floor Kit $995 * on sale
-
The Landcrusier Prado 250 False Floor is the starting point for our INFINITY range of removable modular products
17mm Structural Top DecKRaises the factory load rating from a mere 60Kg to a massive 250Kg
INFINITY Lock down points installed
Subframe and fixtures included
Under Floor Slim Lithium battery compartment as standardSuits 5 and 7 seat models
-
Wide - 1275mm
Long - 1085mm
Raised above rear Plastic Trim - 53mm
Weight total floor Kit 18.7Kg
Battery Compartment:
Wide 400 - 520 mm
Long 1020 mm
High 73 - 90mmWeight of removed items 5 seat
19.5KgWeight of removed items 7 seat
44.3KgThat is a massive 25.6Kg saving!
Floor will carry 250Kg
-
The floor base is designed to be an easy DIY installation and can be shipped nationwide
All fittings and fixtures are included
The False Floor kit is INFINITY module ready
Side Wing Kit $395 each
-
The Landcruiser Prado 250 Side Wing Kit serves as a practical and convenient storage solution for outdoor enthusiasts and adventurers alike. Featuring a robust 17mm Structural Top Deck, this kit is designed for durability and stability. Additionally, the removable side wings are equipped with lift-out lids, providing easy access
-
Wing Kit LHS and RHS
Weight 3.8Kg
Long - 1000
Wide - 147mm
High 250mm -
Our side wing kit is designed for ease of installation and comes complete with all the fittings you need to ensure a smooth setup process.
High Deck Fridge Slide $1495
-
The High Deck Slide system has it all.
Click in and out in seconds with our INFINITY lock down system
247 Kg rated slide system
900 extension
Slim Drawer
Prep Table
Cable Caddy built in under main deck
Tie Down Points included
Anderson Power Connections
Double lock 225Kg rated slide system that extends 900mm.
Includes Slim Under Deck Drawer with removable Prep Table.
Our slides are rated to 247Kg !!
Our Slides extend a full 900mm !! -
Weight - 26.1Kg
External Dimensions:
1000mm (L) x 485mm (W) x 115mm (H)
Deck Dimensions:
975mm (L) x 440mm (W)
Slim Drawer Internal Dimensions:
570mm (L) x 325mm (W) x 55mm (H)Slide extension 900mm
Slim Drawer Extension 600mmLoad rating - runner system 247Kg
40% - less 100mm wide
60% - plus 100mm wide -
The High Deck Slide is available in 3 widths to suit many makes and models of fridges. See our specifications for dimensions
Base Drawer $995
-
Light weight and built to last.
Sealed roller bearings with stainless runner system
Click in and out in seconds with the INFINITY lock down system
Heavy duty carpet lining
2 x removable dividers
17mm Structural Deck
Alloy lockable compression handle
-
50% wide Drawer
Weight - 25.9 Kg
External Dimensions:
1000mm (L) x 485mm (W) x 250mm (H)
Internal Dimensions:
910mm (L) x 355mm (W) x 180mm (H)Drawer extension 615mm
Load rating - runner system 225Kg
40% - less 100mm wide
60% - plus 100mm wide -
Our drawers are Made in Australia to exacting standards.
The Base Drawer is available in 3 widths. See our specifications for dimensions
Stacked Drawer $995
-
Light weight and built to last.
Sealed roller bearings with stainless runner system
Click in and out in seconds with the INFINITY lock down system
Heavy duty carpet lining
2 x removable dividers
17mm Structural Deck
Alloy lockable compression handle
-
50% wide Drawer
Weight - 23.9 Kg
External Dimensions:
900mm (L) x 485mm (W) x 250mm (H)
Internal Dimensions:
810mm (L) x 355mm (W) x 180mm (H)Drawer extension 615mm
Load rating - runner system 225Kg
40% - less 100mm wide
60% - plus 100mm wide -
Our drawers are Made in Australia to exacting standards.
The Stacked Drawer is available in 3 widths. See our specifications for dimensions
Fridge Hutch and Battery Platform $895
-
Hutch is made to orderHeavy Duty Construction
Removable from Slide
Matches other Modules
Removable battery mounting platform
Tough Light weight Construction
-
Weight - 11Kg
External Dimensions:
990mm (L) x 485mm (W) x To suit fridge (H)
Internal Dimensions:
950mm (L) x 445mm (W) x To suit fridge
Battery Deck
225mm (L) x 445mm (W) -
The Hutch is made in 3 widths to match the slide decks in the INFINITY range.
Drop In Lid $295
-
Handy addition to the INFINITY range allowing you to make a flat top deck when you remove your fridge.
Heavy duty carpet lining
17mm Structural Deck
-
Weight - 6.5Kg
Dimensions:
1000mm (L) x 485mm (W) -
The Drop In Lid is made in 3 widths to match the slide decks in the INFINITY range.
Battery Deck $95
-
The battery deck fits both low and high deck slide systems.
Designed to easily mount to the slide frame allowing you to utilise the space left over in front of your fridge. Tie down bolt points and mount hardware is included -
Weight - 1.5Kg
Dimensions:
280MM (L) x 485mm (W) x 45mm (H)40% less 100mm wide
60% plus 100mm wide -
Easy DIY fitting in multiple places - can even be positioned forward of the slide towards the back seats.
Available in 3 widths
Choose from 40/60 Modules or 50/50 Modules
