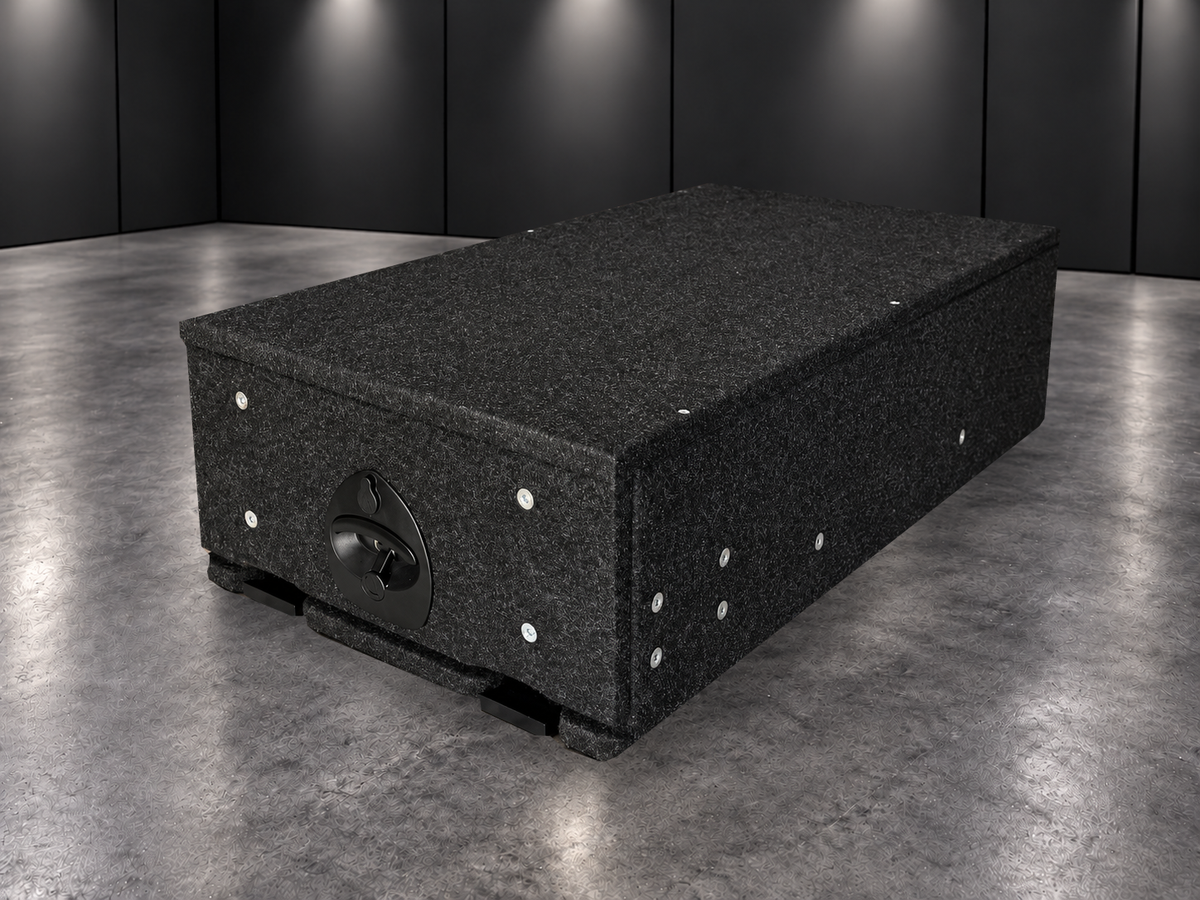

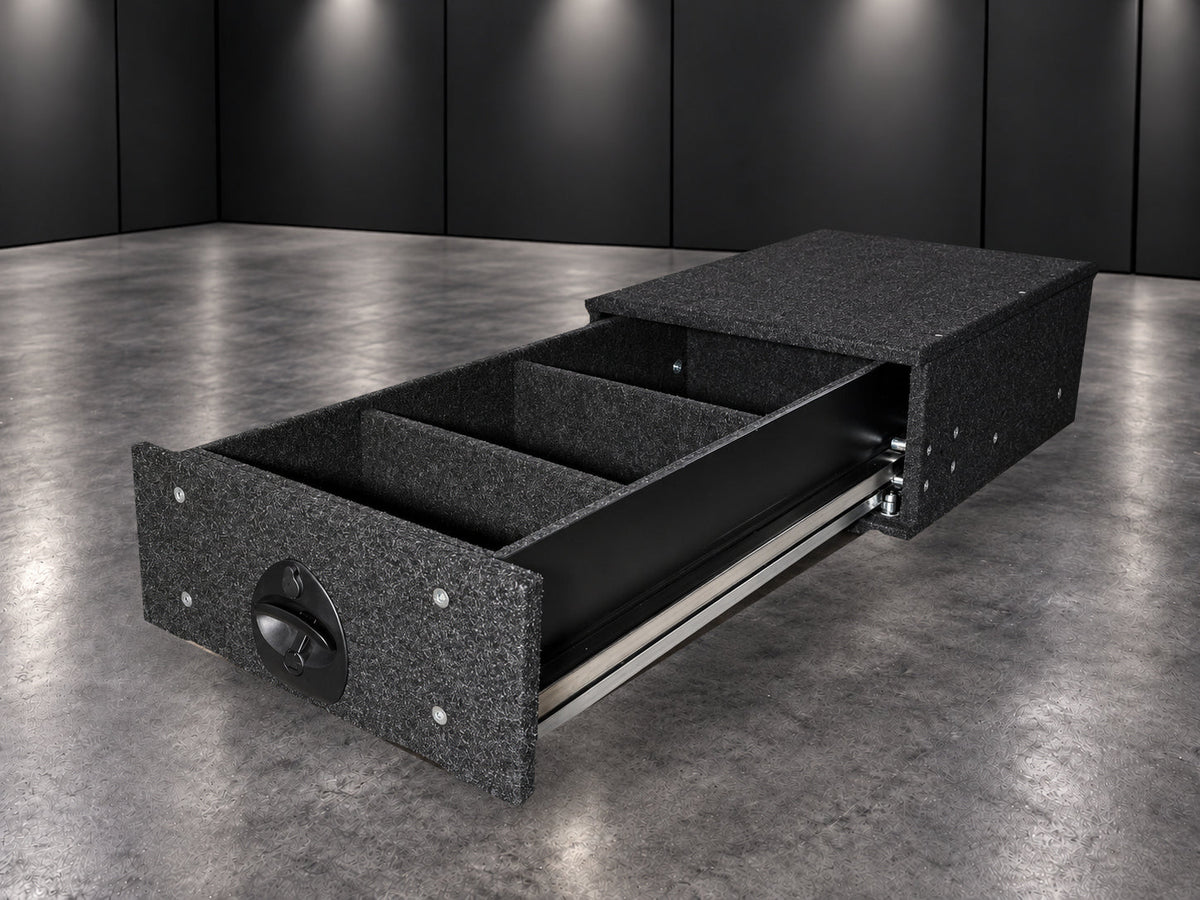

A removable INFINITY Base Drawer for vehicle-specific INFINITY false floors. The lockable drawer uses a sealed stainless steel runner system with dual-row bearings and includes two adjustable carpet-lined dividers.
SEE INFINITY WORK
Key features
Removable INFINITY base drawer module
Runner system with stainless steel double row sealed bearings
Compression lockable handle
INFINITY lock-down mechanism
Specifications
Module Width
External Dimensions (L × W × H) (mm)
Internal Dimensions (L × W × H) (mm)
Weight
50%
1,000 × 485 × 250
910 × 360 × 180
24.9 kg
40%
1,000 × 385 × 250
910 × 260 × 180
22.9 kg
Stainless steel double row sealed bearings. Includes two removable repositionable dividers.
Base Drawer extension: 750 mm.
A 40% Module Is 100 mm Narrower And A 60% Module Is 100 mm Wider Than The 50% Module.
Good to know
The Base Drawer clicks into a compatible INFINITY false floor and can be removed or reconfigured as your requirements change.
