Lawson Automotive
Milwaukee Easy Access System — Six-Tier Kit
Milwaukee Easy Access System — Six-Tier Kit
Regular price
$3,160.00 AUD
Regular price
Sale price
$3,160.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Six individual slide-out shelf tiers, arranged three per stack. Configure the system around three large Milwaukee PACKOUT organisers in each stack, as illustrated, subject to the dimensions of your equipment.

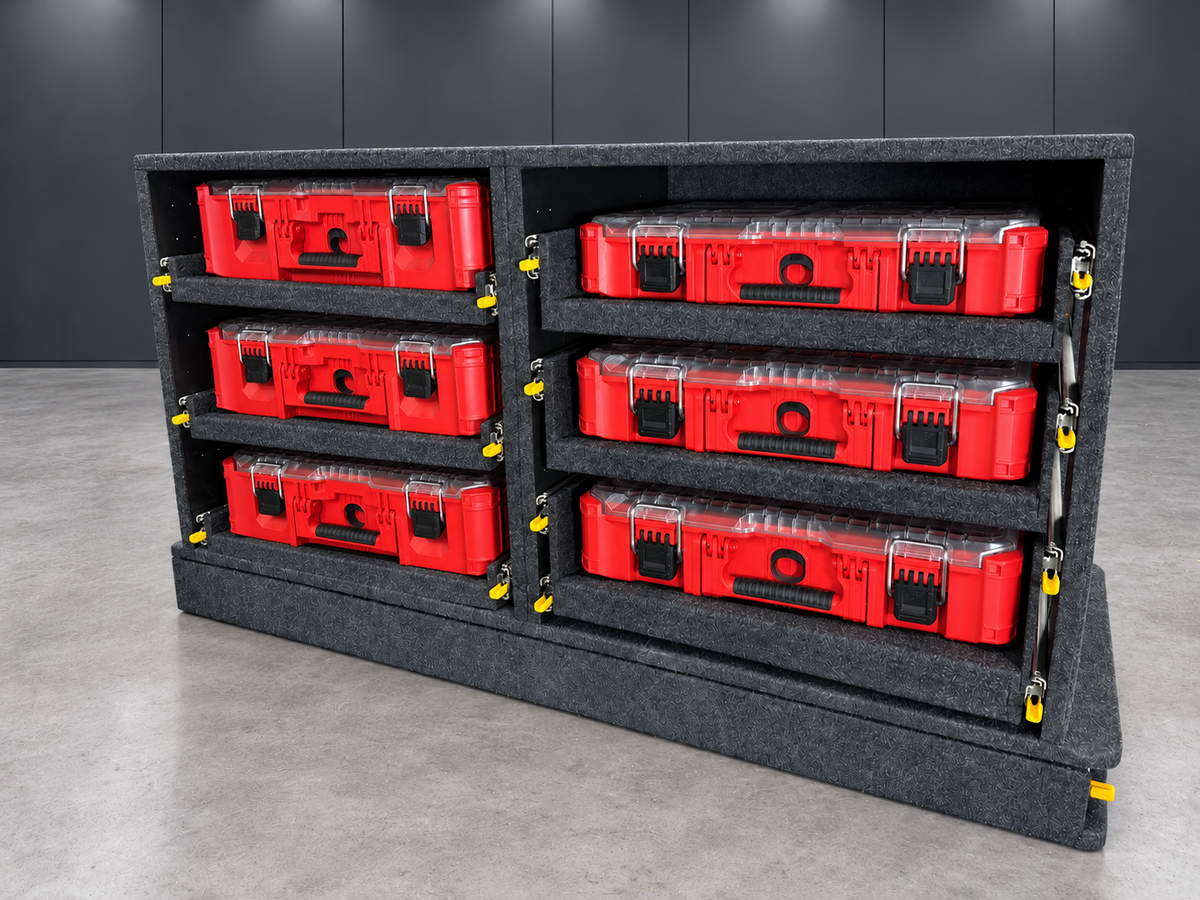

The main image is a rendered six-tier configuration. PACKOUT organisers and tools shown are not included.
See The Easy Access System In Action
The video demonstrates the slide and shelf operation using an example layout. This kit includes six slide-out shelf tiers.
A ready-to-order Milwaukee Easy Access System with six individual slide-out shelf tiers across two stacks. Bring your equipment out to you on a full-extension slide, with a slim utility drawer underneath.
What Is Included
- Easy Access slide base with 1,200 mm extension.
- Two-stack Milwaukee H-frame assembly with solid top decks.
- Built-in slim utility drawer.
- Six individual slide-out shelf tiers across the two stacks.
Additional slide-out shelf tiers are available separately at $195 each including GST. Contact Lawson Automotive if you need more tiers for your layout.
Bring Your Equipment Out To You
The Milwaukee Easy Access System combines a 1,200 mm extension slide, a built-in slim utility drawer and a two-stack H-frame assembly. Designed for drawer-top installation in most vans, its compact layout can be configured for rear access or sideways access through a passenger-side or driver-side sliding door, where vehicle space allows.
Flexible Storage Around Your PACKOUT Equipment
- Choose individual slide-out shelf tiers to suit your organisers.
- Reposition the shelves as your equipment and layout change.
- Solid top decks provide space for additional PACKOUT mounting plates where overhead clearance allows, with access to the sliding shelves underneath.
- Front and rear mounting provisions allow compatible PACKOUT plates to be added for extra storage.
- Each stack base accommodates a compatible PACKOUT plate, allowing drawer modules or other cases to click into a fixed base position without a slide-out shelf.
Specifications
| Slide-Out Shelf Tiers Included | 6 |
|---|---|
| Main Slide Extension | 1,200 mm |
| Main Slide Running System Rating | 247 kg |
| Individual Shelf Running System Rating | 125 kg |
| Overall Length × Width × Height (mm) | — |
| System Weight (kg) | — |
| Weight Per Slide Shelf (kg) | — |
Good To Know
- Australian Made by Lawson Automotive in Adelaide.
- Customisable shelf layout and retrofit options for suitable existing drawer-top installations.
- Door access, mounting space and clearances are confirmed for the intended vehicle and installation.
- Milwaukee PACKOUT cases, drawer modules, tools and the van drawer system are not included.
- Freight is quoted for your order and delivery address.
