Lawson Automotive

Van Four Drawer System – Twin Opposed

$4,990.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Vehicle Toyota HiAce 2019+ (current model) Ford Transit Custom Hyundai Staria Load Hyundai iLoad LDV G10 Plus

Access your equipment from the rear and both sides of the van. This four-drawer layout combines two rear drawers with an opposed pair of side drawers: one opening through each sliding door.

Drawer configuration

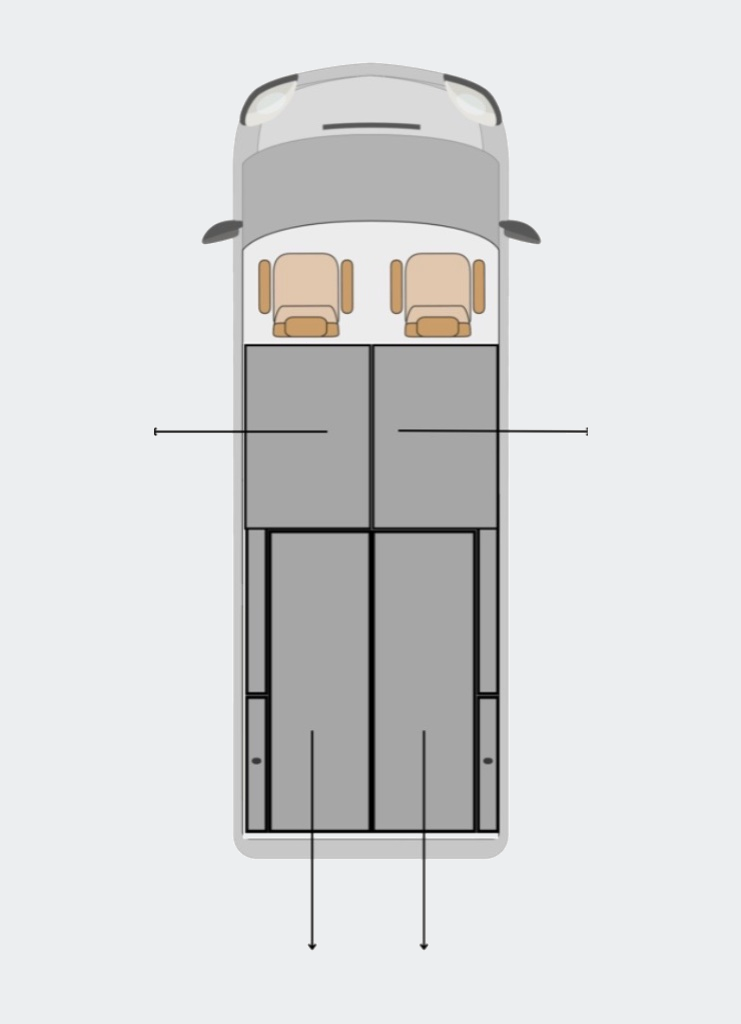

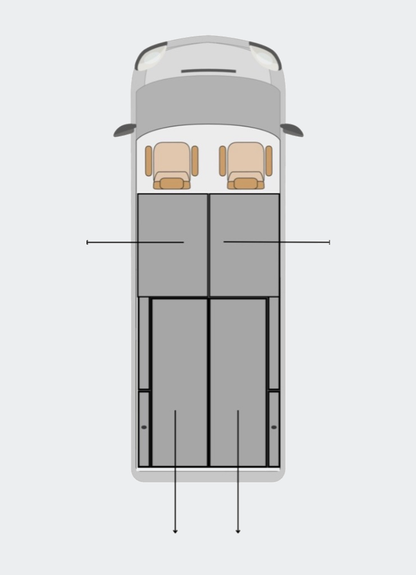

Four drawers: two rear-access, one left-side-access and one right-side-access.
Requires access through both sliding doors.
Flat top deck above the drawer system.

Built to suit your van

We confirm your van model, model year, wheelbase, sliding-door arrangement and available space before manufacture. Drawer dimensions and access positions are matched to the agreed vehicle layout.

Easy DIY installation. Shelving, Easy Access slides, Milwaukee storage accessories and other fitout additions are available separately.

Compatible vans

Toyota HiAce 2019+ (current model)
Ford Transit Custom
Hyundai Staria Load
Hyundai iLoad
LDV G10 Plus

This opposed layout requires two sliding doors. It is not offered for the previous-model HiAce, which has one sliding door as standard.

Dimensions & good to know

All measurements are in millimetres, listed as width × length × height. Usable internal dimensions are for each drawer and include the carpet allowance.

Commercial van systems are 370 mm high, with 300 mm usable internal drawer height and 10 mm clearance above the drawer.

Toyota HiAce 2019+ LWB

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	630 × 1550 × 370 per unit (two units)	504 × 1450 × 300
Twin opposed sliding-door drawers	900 × 1480 × 370 overall	775 × 646 × 300

Ford Transit Custom SWB

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	650 × 1290 × 370 per unit (two units)	527 × 1190 × 300
Twin opposed sliding-door drawers	1000 × 1530 × 370 overall	875 × 671 × 300

Ford Transit Custom LWB

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	650 × 1700 × 370 per unit (two units)	527 × 1600 × 300
Twin opposed sliding-door drawers	1000 × 1530 × 370 overall	875 × 671 × 300

Hyundai Staria Load

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	1180 × 1450 × 370 overall	474 × 1340 × 300
Twin opposed sliding-door drawers	850 × 1390 × 370 overall	725 × 601 × 300

Hyundai iLoad

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	625 × 1550 × 370 per unit (two units)	502 × 1450 × 300
Twin opposed sliding-door drawers	700 × 1390 × 370 overall	575 × 601 × 300

LDV G10 / G10 Plus

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	1150 × 1550 × 370 overall	459 × 1440 × 300
Twin opposed sliding-door drawers	770 × 1430 × 370 overall	645 × 621 × 300

For combined layouts, use the rear and sliding-door module dimensions shown; these are separate modules rather than a single overall fitout measurement.

Opposed layouts require access through both sliding doors. We confirm your van model, wheelbase and door arrangement before manufacture.

Key features

Australian Made by Lawson Automotive
Easy DIY fitment
Practical storage for tools and equipment
Australia-wide delivery from Adelaide

Fitment and delivery

Select the system or shelving that suits your vehicle and layout
Easy DIY installation, with Lawson Automotive support available
Australia-wide delivery, with freight quoted individually by destination
Adelaide collection available

Good to know

Contact Lawson Automotive if you need help choosing a layout or confirming fitment.
Accessories and tools shown in photos are included only where stated in the product description.
