Lawson Automotive
Van Quad Sliding Door Drawer System
Van Quad Sliding Door Drawer System
Regular price
$3,590.00 AUD
Regular price
Sale price
$3,590.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Four side-access drawers in a standalone module: two opening through each sliding door. Keep fittings, consumables and equipment organised with access from both sides of your van.
Drawer configuration

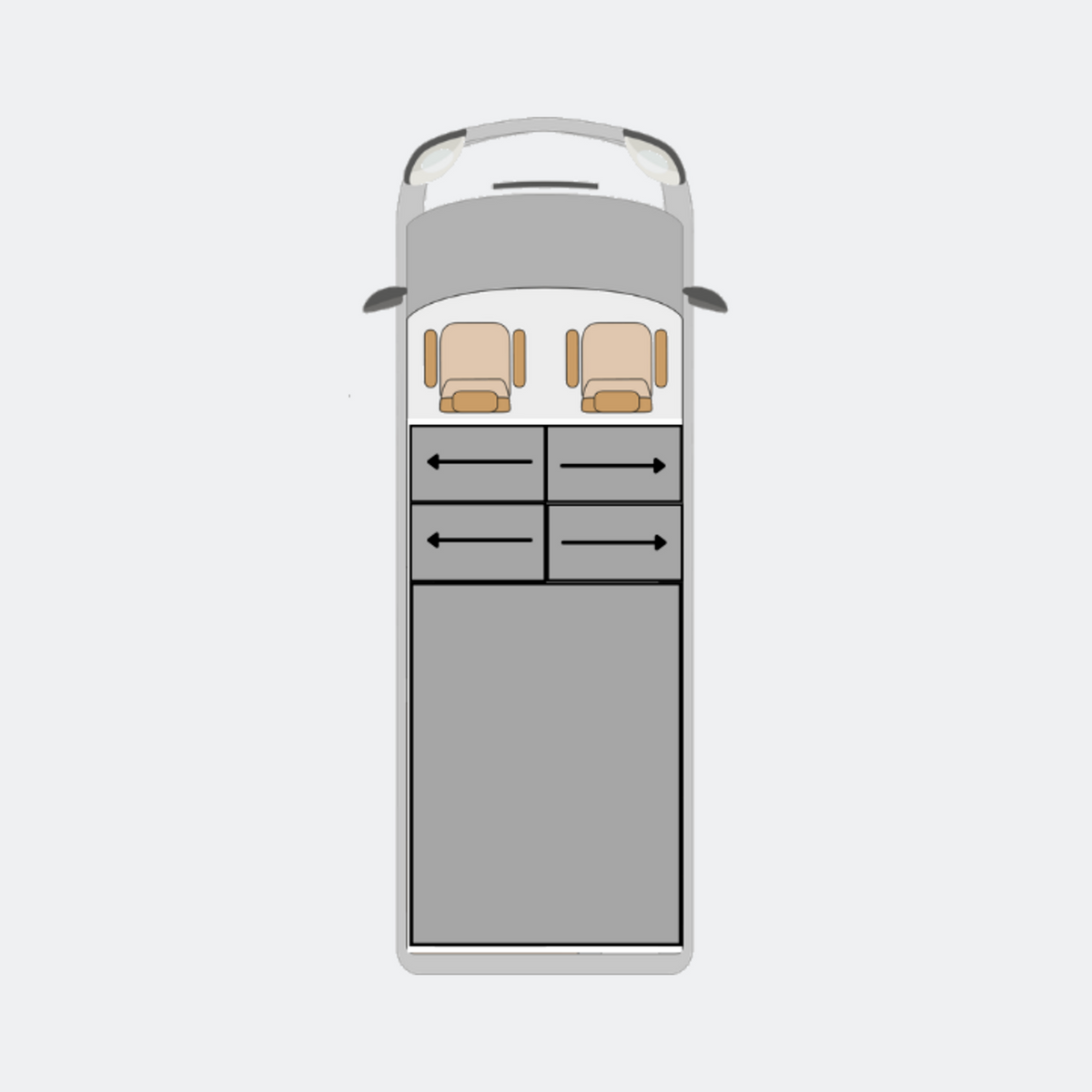

- Four drawers: two opening through each sliding door.
- Requires access through both sliding doors.
- Standalone side-access system; rear drawers are separate.
Built to suit your van
We confirm your van model, model year, wheelbase, sliding-door arrangement and available space before manufacture. Drawer dimensions and access positions are matched to the agreed vehicle layout.
Easy DIY installation. Shelving, Easy Access slides, Milwaukee storage accessories and other fitout additions are available separately.
Compatible vans
- Toyota HiAce 2019+ (current model)
- Ford Transit Custom
This opposed layout requires two sliding doors. It is not offered for the previous-model HiAce, which has one sliding door as standard.
Dimensions & good to know
All measurements are in millimetres, listed as width × length × height. Usable internal dimensions are for each drawer and include the carpet allowance.
Commercial van systems are 370 mm high, with 300 mm usable internal drawer height and 10 mm clearance above the drawer.
Toyota HiAce 2019+ LWB
| Drawer module | External W × L × H (mm) | Usable internal W × L × H per drawer (mm) |
|---|---|---|
| Quad opposed sliding-door drawers | 900 × 1480 × 370 overall | 334 × 646 × 300 |
Ford Transit Custom SWB
| Drawer module | External W × L × H (mm) | Usable internal W × L × H per drawer (mm) |
|---|---|---|
| Quad opposed sliding-door drawers | 1000 × 1530 × 370 overall | 384 × 671 × 300 |
Ford Transit Custom LWB
| Drawer module | External W × L × H (mm) | Usable internal W × L × H per drawer (mm) |
|---|---|---|
| Quad opposed sliding-door drawers | 1000 × 1530 × 370 overall | 384 × 671 × 300 |
For combined layouts, use the rear and sliding-door module dimensions shown; these are separate modules rather than a single overall fitout measurement.
Opposed layouts require access through both sliding doors. We confirm your van model, wheelbase and door arrangement before manufacture.
Key features
- Australian Made by Lawson Automotive
- Easy DIY fitment
- Practical storage for tools and equipment
- Australia-wide delivery from Adelaide
Fitment and delivery
- Select the system or shelving that suits your vehicle and layout
- Easy DIY installation, with Lawson Automotive support available
- Australia-wide delivery, with freight quoted individually by destination
- Adelaide collection available
Good to know
- Contact Lawson Automotive if you need help choosing a layout or confirming fitment.
- Accessories and tools shown in photos are included only where stated in the product description.
