Van Three Drawer System – Two Rear + One Sliding Door

$4,490.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Vehicle Hyundai Staria Load Hyundai iLoad LDV G10 Plus

Three drawers with access from the rear and one sliding door. Two rear drawers keep larger tools organised, while a single side-access drawer brings frequently used equipment within reach.

Drawer configuration

Two drawers opening through the rear doors.
One drawer opening through one sliding door.
Flat top deck above the drawer system.

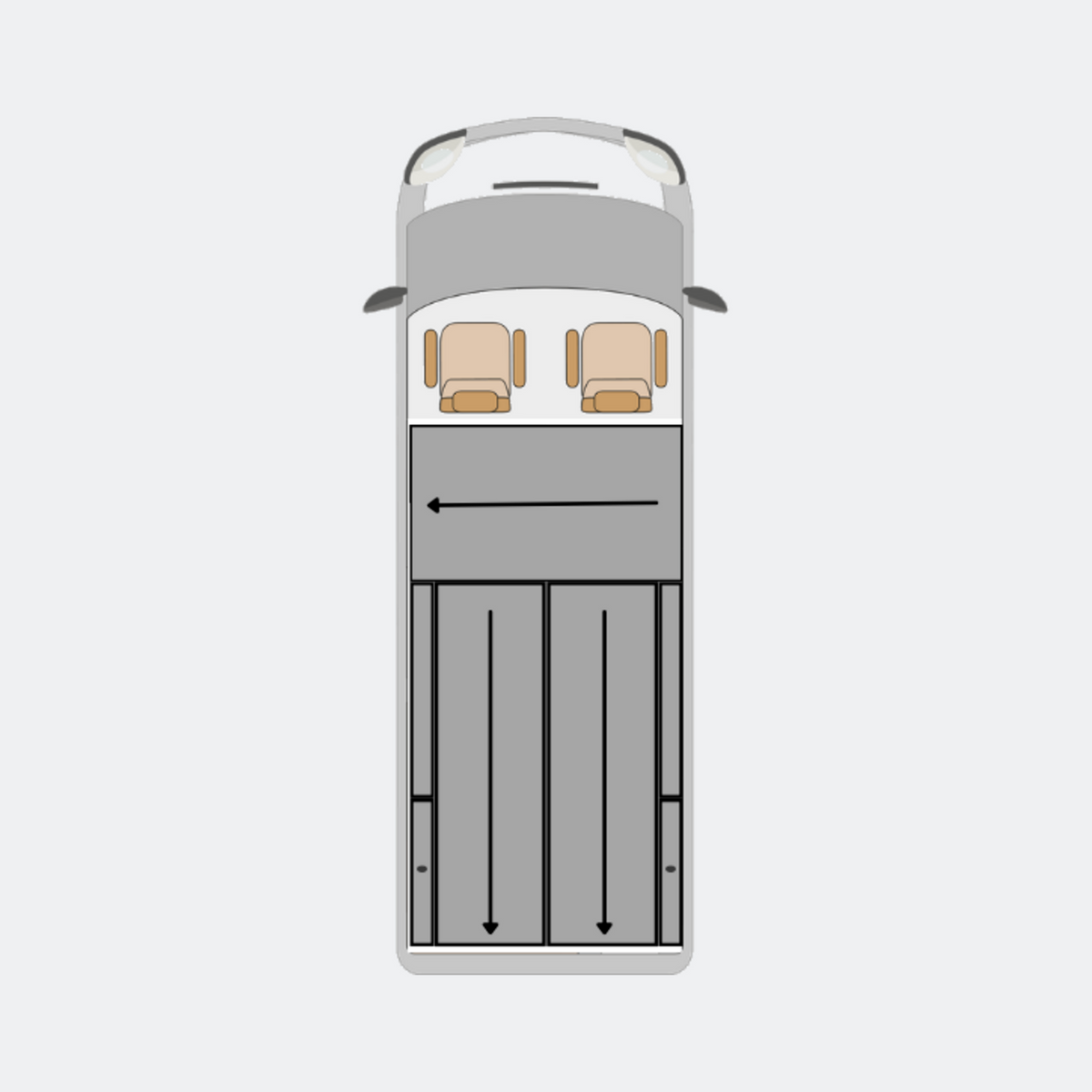

The diagram illustrates drawer positions and opening directions. Final dimensions are specific to your vehicle.

Easy DIY installation. Shelving, slides, tools and other fitout accessories are available separately.

Compatible vans

Hyundai Staria Load
Hyundai iLoad
LDV G10 Plus

Dimensions & good to know

All measurements are in millimetres, listed as width × length × height. Usable internal dimensions are for each drawer and include the carpet allowance.

Commercial van systems are 370 mm high, with 300 mm usable internal drawer height and 10 mm clearance above the drawer.

Hyundai Staria Load

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	1180 × 1450 × 370 overall	474 × 1340 × 300
Single sliding-door drawer	850 × 1390 × 370 overall	Contact us for usable internal dimensions

Hyundai iLoad

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	625 × 1550 × 370 per unit (two units)	502 × 1450 × 300
Single sliding-door drawer	700 × 1390 × 370 overall	Contact us for usable internal dimensions

LDV G10 / G10 Plus

Drawer module	External W × L × H (mm)	Usable internal W × L × H per drawer (mm)
Twin rear drawers	1150 × 1550 × 370 overall	459 × 1440 × 300
Single sliding-door drawer	770 × 1430 × 370 overall	Contact us for usable internal dimensions

For combined layouts, use the rear and sliding-door module dimensions shown; these are separate modules rather than a single overall fitout measurement.

Opposed layouts require access through both sliding doors. We confirm your van model, wheelbase and door arrangement before manufacture.

Key features

Australian Made by Lawson Automotive
Easy DIY fitment
Practical storage for tools and equipment
Australia-wide delivery from Adelaide

Fitment and delivery

Select the system or shelving that suits your vehicle and layout
Easy DIY installation, with Lawson Automotive support available
Australia-wide delivery, with freight quoted individually by destination
Adelaide collection available

Good to know

Contact Lawson Automotive if you need help choosing a layout or confirming fitment.
Accessories and tools shown in photos are included only where stated in the product description.
