Lawson Automotive
PowerDeck Alpha 105 Floor
PowerDeck Alpha 105 Floor
Couldn't load pickup availability
5-Year Warranty on the Entire PowerDeck System
Lawson Automotive provides a five-year warranty on the complete PowerDeck module, including the lithium battery, REDARC charger, BMS, wiring and all components supplied as part of the PowerDeck system.
Contact Lawson Automotive for warranty support. This warranty is in addition to your rights under Australian Consumer Law.
Start with the floor. Build your INFINITY system.

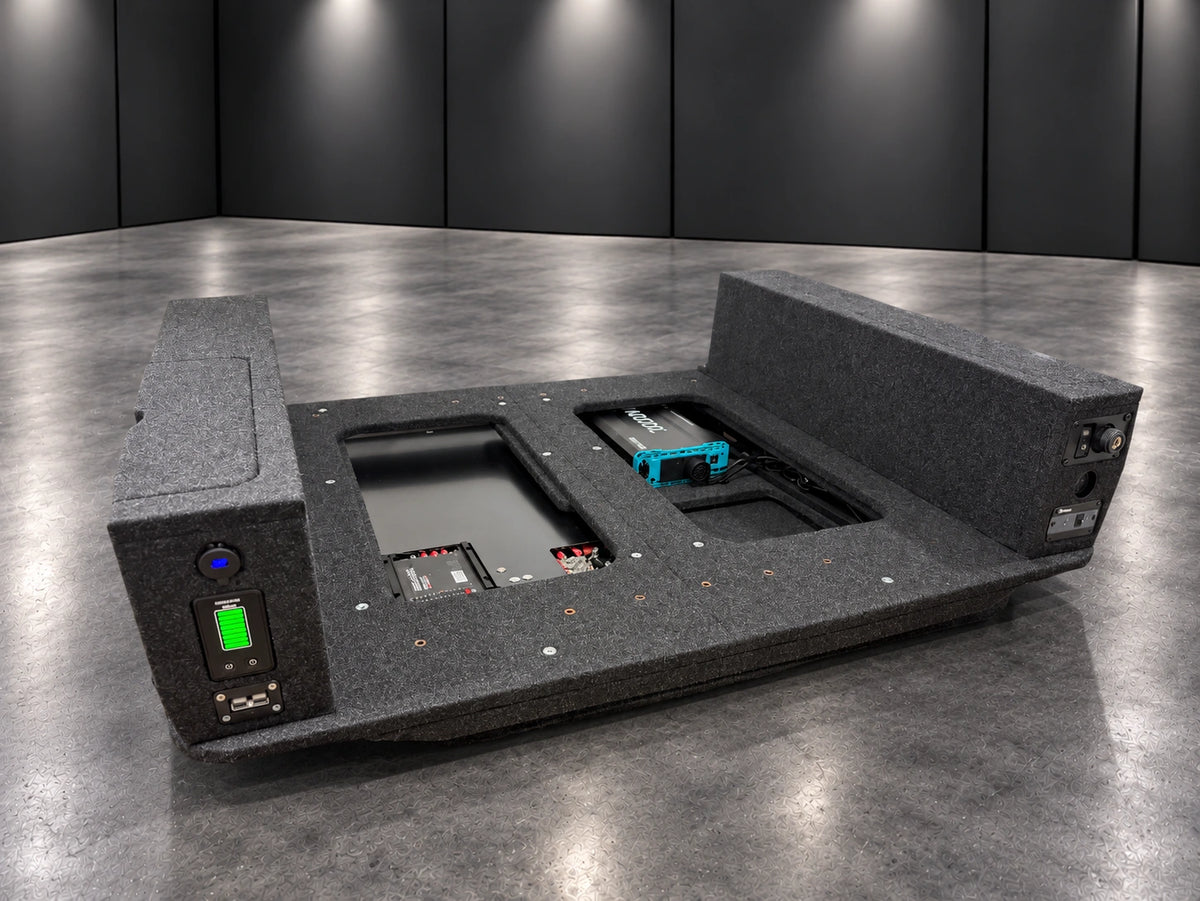

The PowerDeck Alpha 105 Floor is your powered starting point. It combines a vehicle-specific INFINITY floor with an integrated 105 Ah lithium battery and REDARC Alpha charging system, ready to build around the way you travel.
Start with the powered floor, then choose the electrical upgrades, wing kits and removable storage modules that suit your vehicle and budget. You can build your complete system now or expand it as your needs change.
Make it your own
- Add an ARB brushless compressor: choose a single or twin compressor kit for convenient onboard air.
- Add a Renogy inverter: select a compatible inverter upgrade for 240 V power.
- Add battery monitoring and a wing-mounted display: explore powered and REDARC Essentials fascia options with the matching wing kits.
- Complete your wing kits: add the matching compressor controls, inverter remote fascia and outlets for a tidy, accessible installation.
- Click in your INFINITY modules: combine drawers, High Deck Slides, fridge hutches, a kitchen module and other compatible storage. Click in, click out in seconds.
Use the INFINITY Kit Builder to explore compatible components, see your layout and price your selected system.
Explore the INFINITY Kit Builder

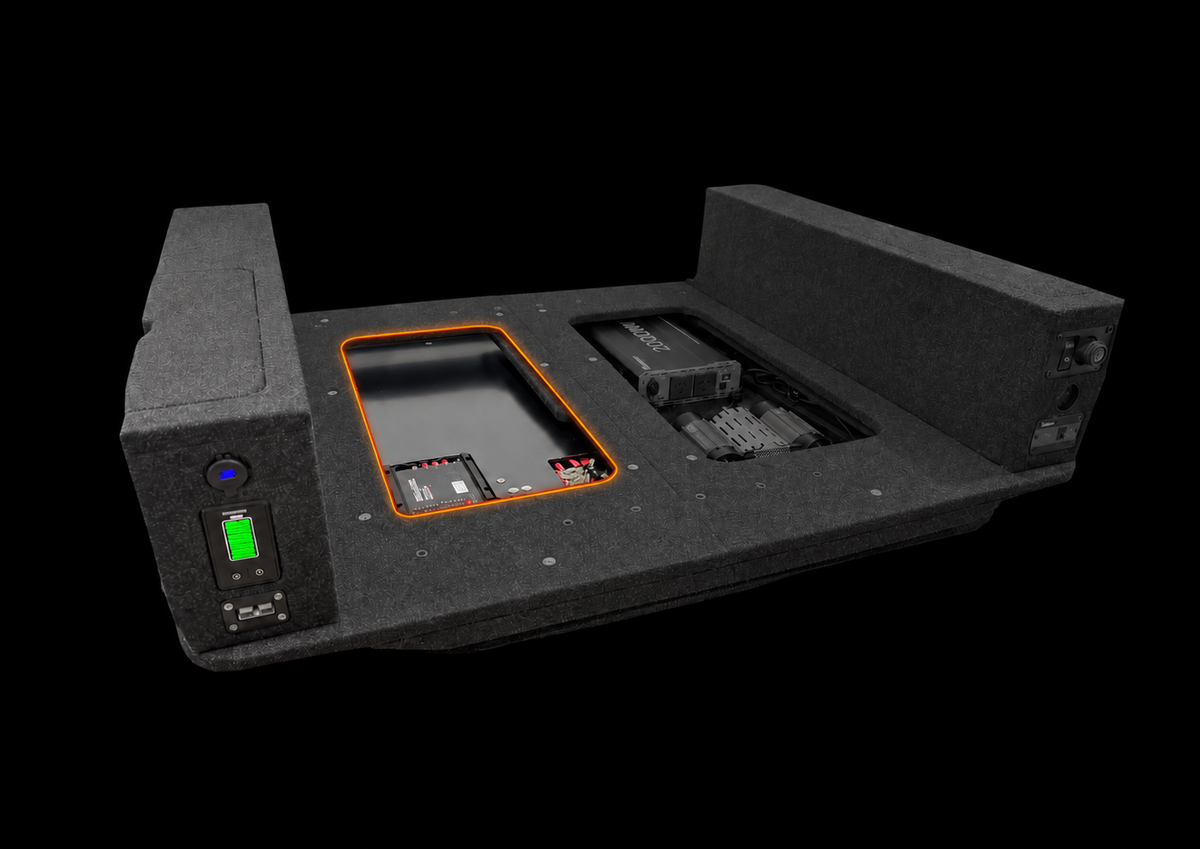

Photo shows an example configuration with optional extras. The floor price includes the PowerDeck battery and charging system with the vehicle wiring loom. Compressor, inverter, wing kits, optional monitoring displays/fascias and click-in storage modules are additional. The photo shows a LandCruiser 300 example; your floor is manufactured to suit the vehicle selected.
Approximate Complete Floor Weight
- Toyota Prado 250 Series: 33.2 kg
- Toyota LandCruiser 300 Series: 36.3 kg
- Isuzu MU-X: 36.3 kg
- Ford Everest 2023.5+: 36.3 kg
Includes the floor, battery and charging system, and vehicle wiring loom. Storage modules, wings, compressor and inverter are additional.
Key Features
- Vehicle-specific powered floor, mounting kit and subframe included.
- Australian Made in Adelaide. Compatible INFINITY modules click in and out.
- 5-year module warranty through Lawson Automotive.
PowerDeck Specifications
- Battery Capacity
- 105 Ah
- Cell Chemistry
- LiFePO4 / LFP
- Nominal Voltage
- 12.8 V
- Nominal Energy
- 1.344 kWh
- Cell Configuration
- 4 x EVE LF105 / 4S1P
- Cell Rating
- 105 Ah / 3.2 V per cell
- Charging Hardware
- REDARC BCDC Alpha50 with DC and solar inputs
- Configured Charge Current
- 40 A (50 A rated charger hardware)
- Battery Management
- JK 300 A active-balancing BMS
- Optional Inverter Capacity
- Up to 2,000 W
- Battery Monitoring
- BSEN500 available through the optional Essentials wing kit
- Published Cell Cycle Life
- 4,000 cycles at 25 C under manufacturer test conditions
- Vehicle Fitment
- LandCruiser 300, Prado 250, MU-X and Everest 2023.5+
Good To Know
- Rear seat removal is required for seven-seat models, except LandCruiser 200. LandCruiser 200 is not offered with underfloor PowerDeck upgrades.
- Wings, storage modules, inverters, compressors and the Essentials monitoring kit are optional and sold separately.
- The BMS component rating is not the complete-system discharge rating. Continuous and peak system discharge ratings are to be confirmed.
